德國HYDROTECHNIK溫度傳感器的型號包括但不限于HYDROTECHNIK傳感器、multihandy 2020、multihandy 3020、multihandy 3050、multiBox 3060、multiSystem 5060、multiSystem 8050、multiControl 8050、multiEPC、SEG1060,HySense? TE 200 溫度傳感器常用型號

Sensor Model Temperature range Part No.產(chǎn)品型號和訂貨號HYDROTECHNIK代理商-蘇州知非機(jī)電設(shè)備有限公司0512-68733420/18962140620/13915513800

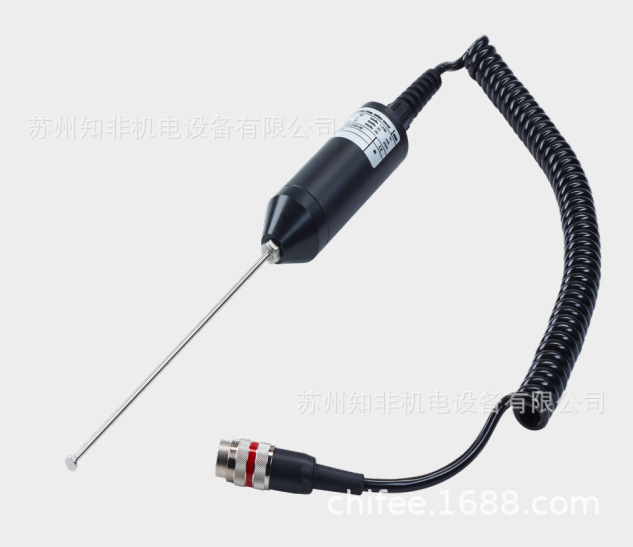

HySense? TE 200溫度傳感器
Surface probe
-50 … 200 °C 3170-01-S-03.00
-50 … 400 °C 3170-01-S-07.00

Immersion probe
-50 … 200 °C 3170-02-S-06.00
-50 … 400 °C 3170-02-S-08.00

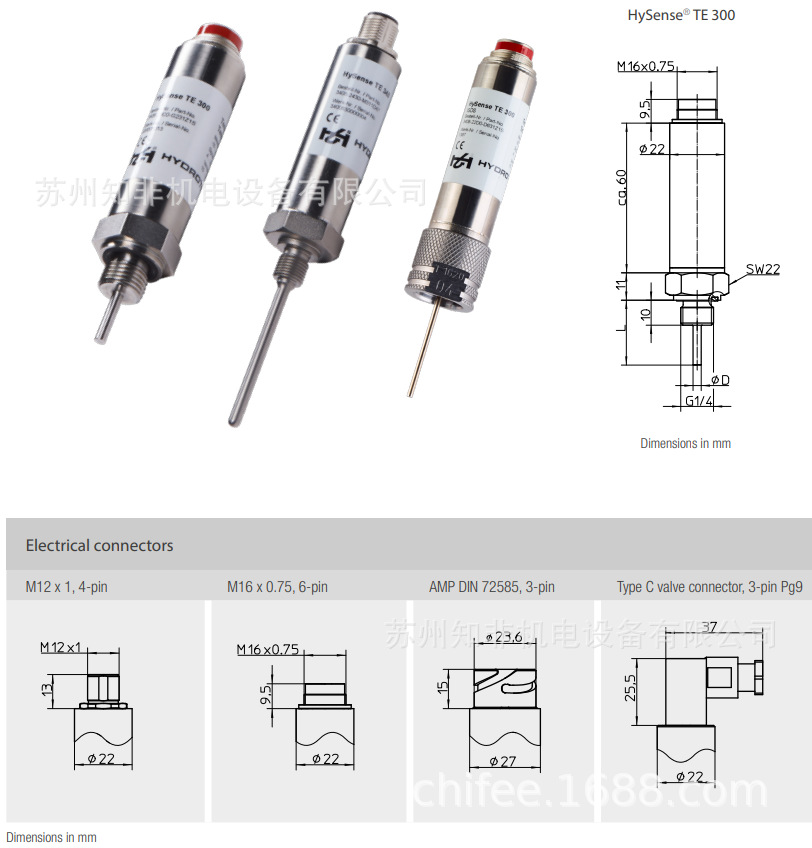

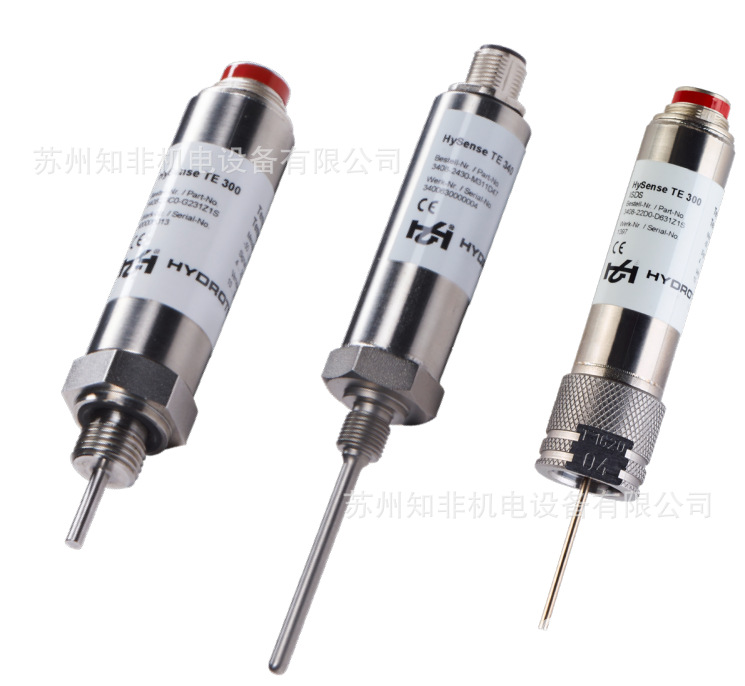

TE300溫度變送器

TE 300 -50 … 200
M16 x 0.75
6-pin
4 … 20 mA, ISDS
MINIMESS? 1620 p/T test
point direct sensor adapter
– 2 3408-22D0-D631Z1S
MINIMESS? 1615 p/T test
– 2 3408-22D0-D731Z1S
ISO 228-G 1/4 26 3.3 3408-23C0-G231Z1S
M10 x 1 20 4 3408-2410-M331Z1S

TE 330 -50 … 200 M12 x 1, 4-pin
0 … 10 VDC
– 2 3408-22D0-D611D47
4 … 20 mA
– 2 3408-22D0-D611Z13

0 … 10 VDC ISO 228-G 1/4* 26 3.3 3408-23C0-G211D47
4 … 20 mA ISO 228-G 1/4* 26 3.3 3408-23C0-G211Z13
0 … 10 VDC ISO 228-G 1/4 20 4 3408-2410-G211D47
4 … 20 mA ISO 228-G 1/4 40 4 3408-2420-G211Z13
0 … 10 VDC M10 x 1 60 4 3408-2430-M311D47
4 … 20 mA ISO 228-G 1/4 250 4 3408-2470-G211Z13
4 … 20 mA ISO 228-G 1/4 200 6 3408-2660-G211Z13

TE 350 -50 … 200°C
4 … 20 mA ISO 228-G 1/4 26 3.3 3408-23C0-G2C3Z11

TE 380 -50 … 200
AMP DIN
72585, 3-pin
MINIMESS?
1620 p/T test point direct
sensor adapter
– 2 3408-22D0-D6R1Z12

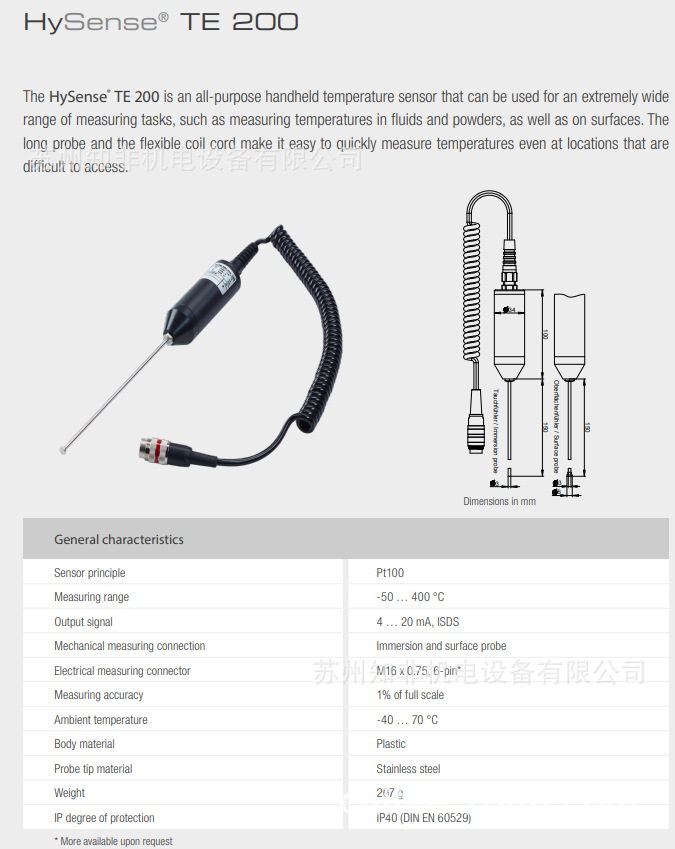

HySense? TE 200
Surface probe
Immersion probe

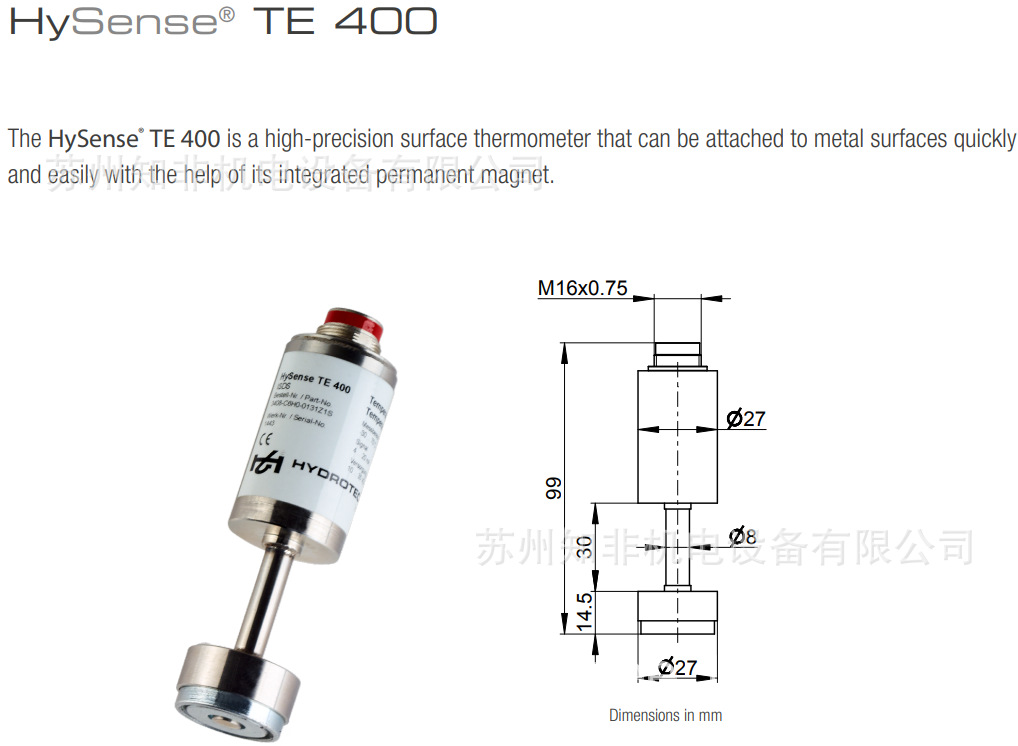

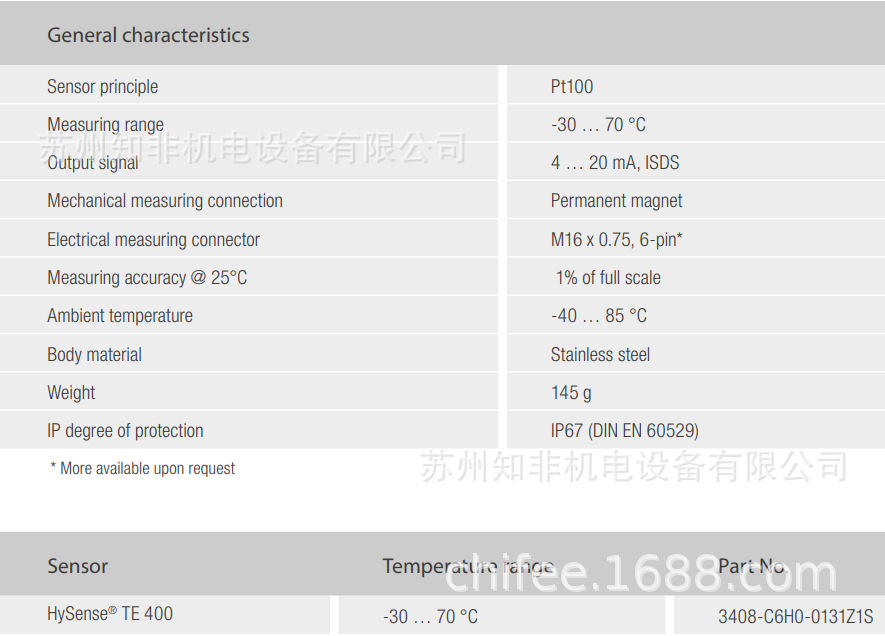

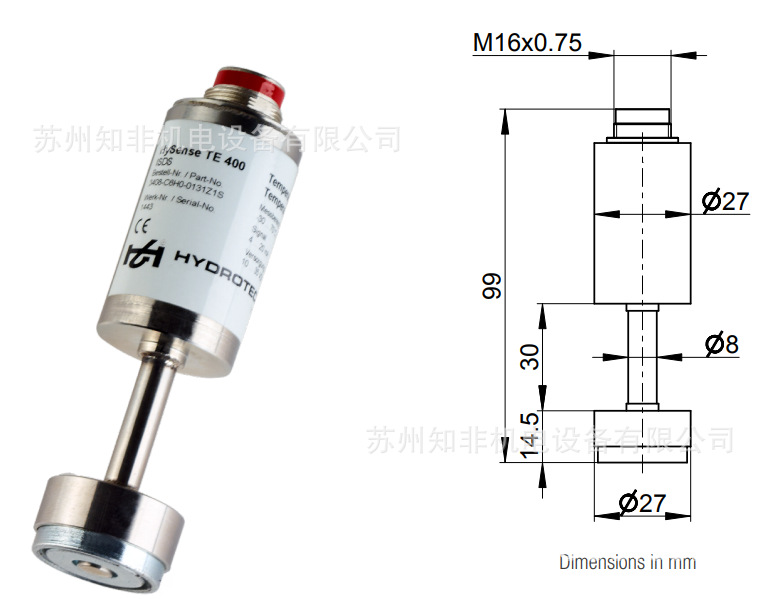

HySense? TE 400 -30 … 70 °C 3408-C6H0-0131Z1S

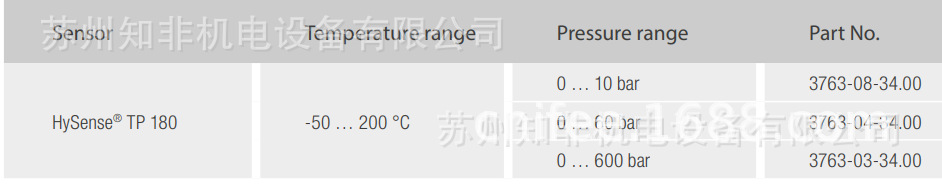

Sensor Temperature range Pressure range Part No.

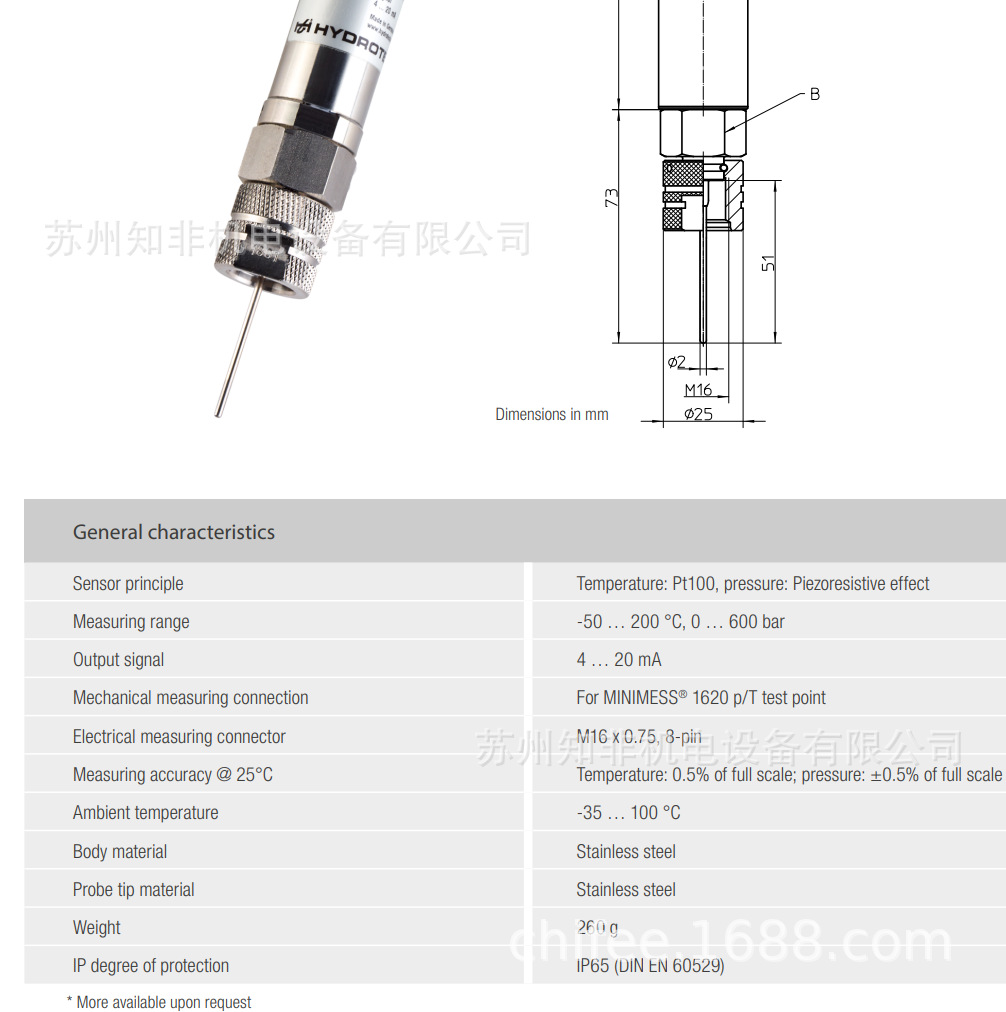

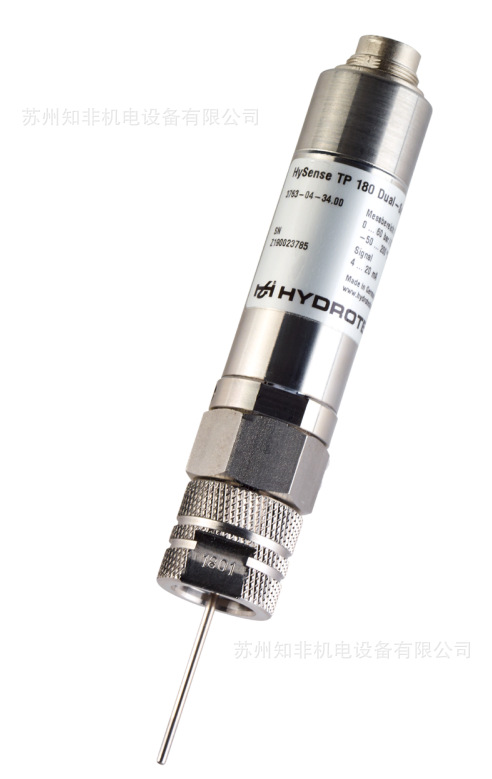

HySense? TP 180 -50 … 200 °C
0 … 10 bar 3763-08-34.00
0 … 60 bar 3763-04-34.00
0 … 600 bar 3763-03-34.00
HYDROTECHNIK溫度傳感器型號

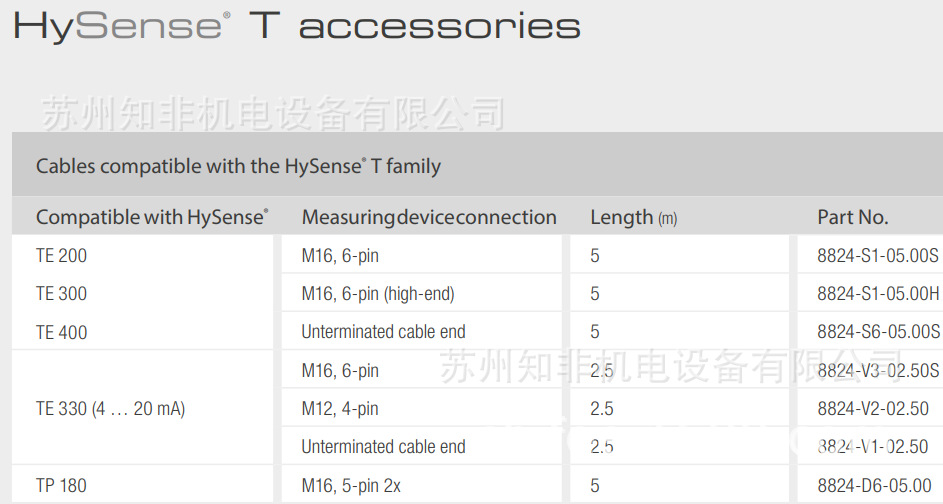

Compatible with HySense? Measuring device connection Length (m) Part No.
TE 200
TE 300
TE 400
M16, 6-pin 5 8824-S1-05.00S
M16, 6-pin (high-end) 5 8824-S1-05.00H
Unterminated cable end 5 8824-S6-05.00S
TE 330 (4 … 20 mA)
M16, 6-pin 2.5 8824-V3-02.50S
M12, 4-pin 2.5 8824-V2-02.50
Unterminated cable end 2.5 8824-V1-02.50
TP 180 M16, 5-pin 2x 5 8824-D6-05.00
Sensor Measuring
range
C°
Electrical
connector
Output signal Mechanical connection Probe
length
mm
Probe
diameter
Part No.

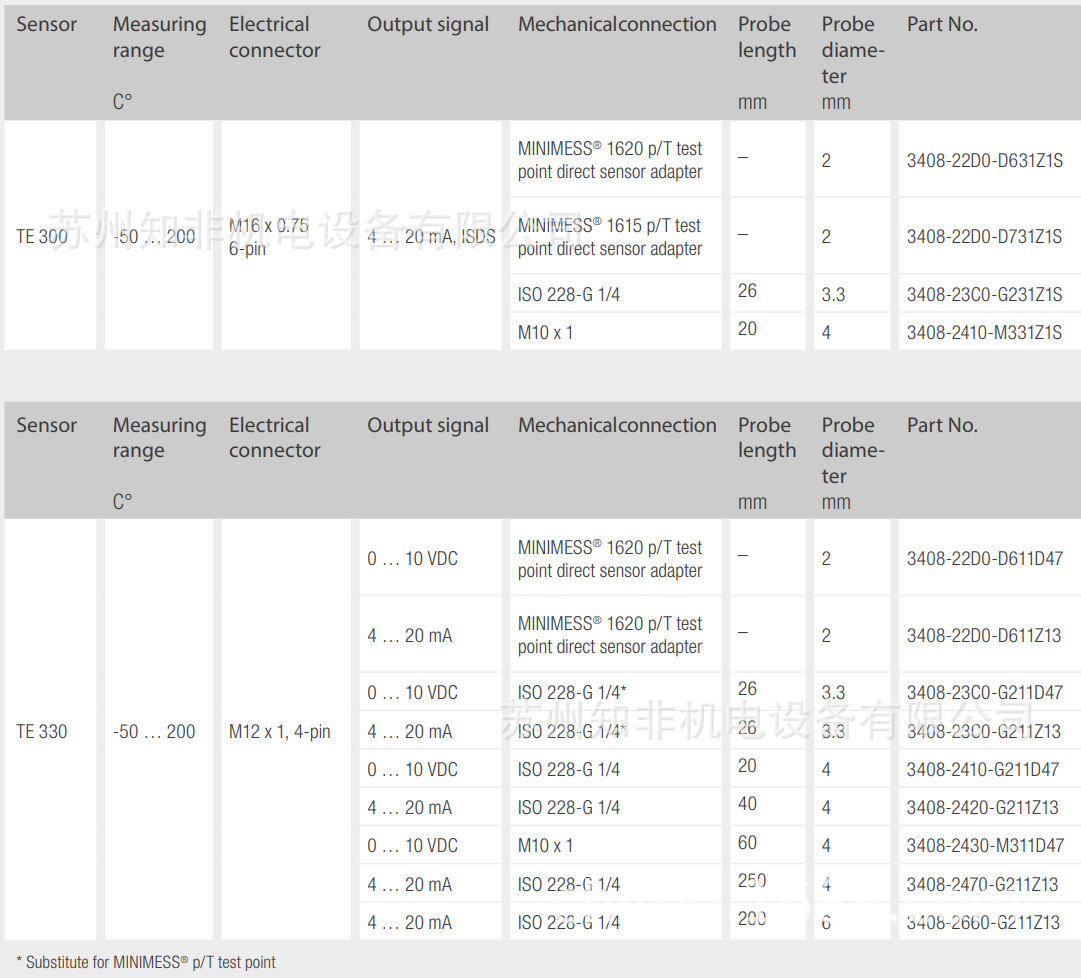

TE 300 -50 … 200 M16 x 0.75
6-pin 4 … 20 mA, ISDS
MINIMESS? 1620 p/T test
point direct sensor adapter – 2 3408-22D0-D631Z1S
MINIMESS? 1615 p/T test
point direct sensor adapter – 2 3408-22D0-D731Z1S

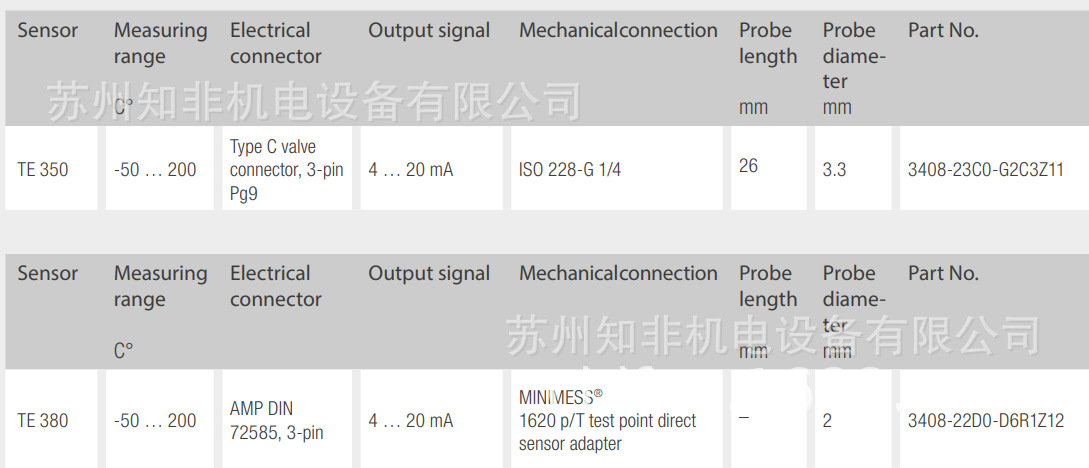

TE 350 -50 … 200
Type C valve
connector, 3-pinPg9

Output signal Mechanical connection Probe
TE 380 -50 … 200 AMP DIN
72585, 3-pin 4 … 20 mA
1620 p/T test point direct
0 … 10 VDC MINIMESS? 1620 p/T test
point direct sensor adapter – 2 3408-22D0-D611D47
4 … 20 mA MINIMESS? 1620 p/T test
point direct sensor adapter – 2 3408-22D0-D611Z13
Sensor Temperature range Part No.
CL 100 CM 100 CV 100 CX 197 CW 100
HySense? CL 120 200 3402-CL12-G926C0-000
HySense? CL 130 375 3402-CL13-G926C0-000
HySense? CL 160 615 3402-CL16-G926C0-000
HySense? CV 100 3402-CV10-G926C0-000 Product discontinued
Screw-in block 3109-20-05.01
HySense? CX 197 3402-CX10-D100-000

Compatible with HySense? Measuring device connection Length
CL 120, 130, 160
CM 100
CV 100
CW 100
M12, 8-pin 5 8824-T6-05.00
Unterminated cable end 2.5 8824-T1-05.00
CX 197 M12, 8-pin 1.5 8824-TB-00.00
