意大利原裝進口PIUSI(派優士)公司于1953年成立于意大利曼圖瓦市的Suzzara鎮。從一開始，企業的產品就以結實耐用、使用簡便和適合于多用途(PIU’-USI)著稱，這也是企業名稱的由來。企業的廠房面積占地44000平米，帶有一個自動化倉庫和現代化的辦公設施。此外，派優士公司擁有200名員工、一個研發實驗室和一個散射全球的商業網絡。2009年，更通過增設美國佛羅里達辦事處而得到鞏固，以便覆蓋中、北美洲業務。

派優士PIUSI股份公司向燃料、潤滑劑和液體的轉存和計量行業提供專業方案，產品使用簡便且高性能。派優士泵浦、計量器、加注設備和附件(過濾器、加油加油設備等)在全球各個行業備受青睞并深受用戶贊賞：其中有農業、汽車制造業甚至航海等，企業尤其專注于尿素(AdBlue, DEF, ARLA)的加注機械。

主要產品：

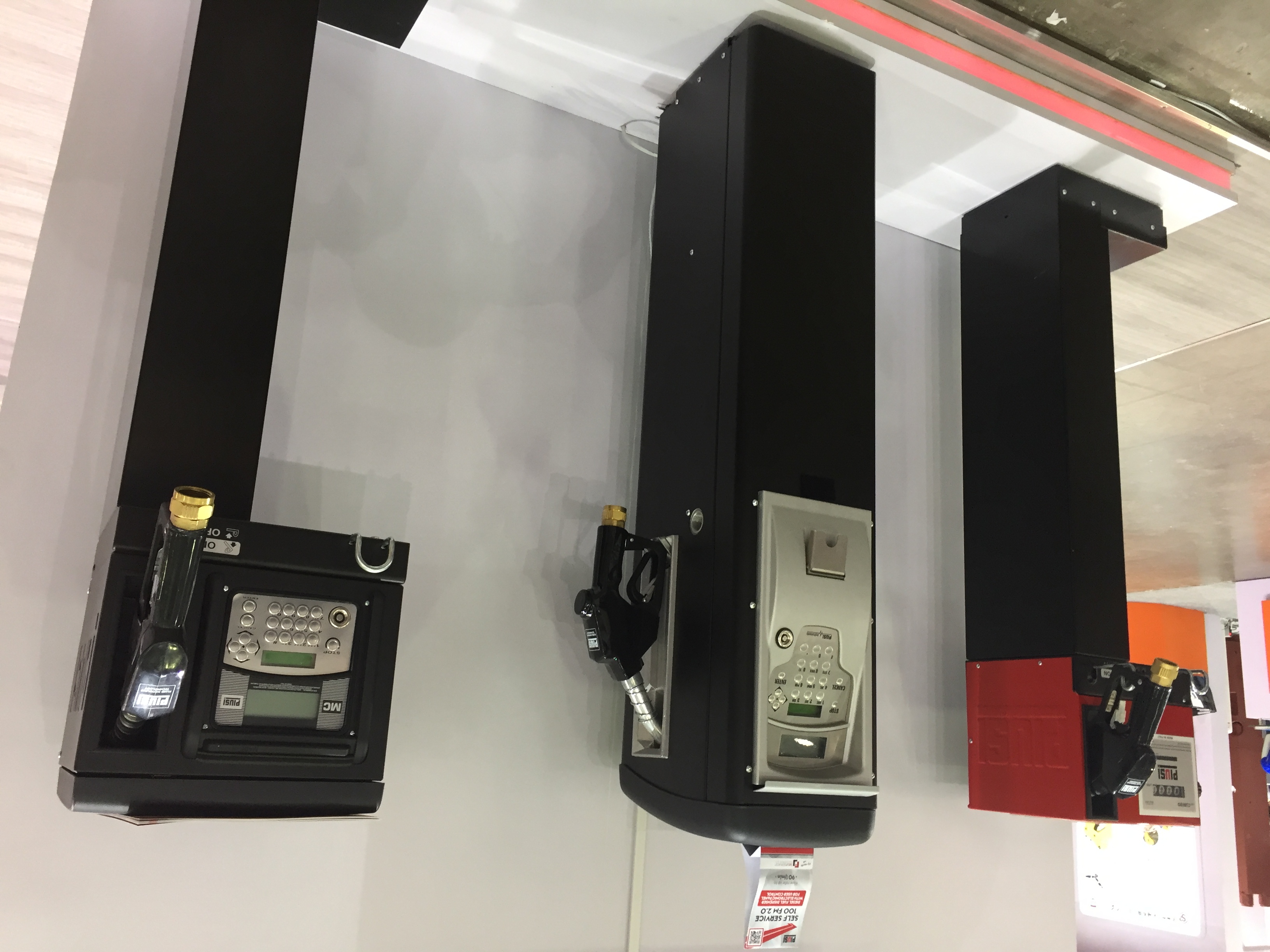

燃料輸送站/柴油加油機

汽油和柴油輸用送葉片泵、膜泵和手泵

電子、機械和脈沖計量器

計量加油加油設備

手動和自動燃料加油加油設備

發動機油抽吸和過濾泵

油罐液面指示器

濾清器

流量計

附件

主要型號：

CUBE 70 MC 2.0、CUBE 70 MC LITE、SELF SERVICE FM 2.0、CUBE 56 - 70、CUBE 70 MC、DRUM VISCOMAT、PIUSIBOX、SELF SERVICE K44、ST 200 DC、K40、K 400、K 24、K 33-K44、K 500、K 900、OCIO GSM、PICO、ST 200 AC、ST BOX、A60、A80、A120、A280、E80、E120、K200、K24、K33、K44、K40、K400、K700、K900、CUBE56-70、CUBE 70 MC

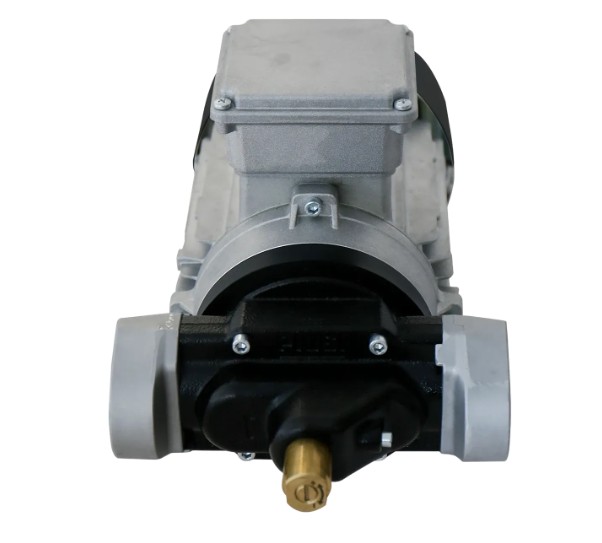

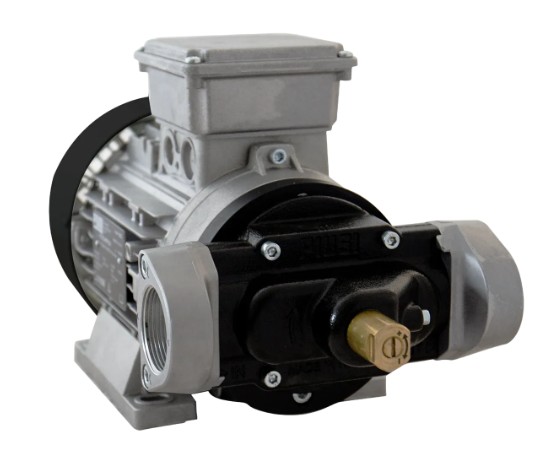

VISCOMAT GEROTOR

Need a reliable oil fuel transfer pump? The VISCOMAT GEROTOR high-flow oil fuel transfer pump delivers top performance for various industrial applications

Request information

Find a dealer

Support

Product category

Lubrication

Fluid

Oil

Application

Garage Equipment, Industrial

Datasheet & manuals

Spare parts

Viscomat gerotor: high-flow oil transfer pump

The VISCOMAT GEROTOR high-flow oil transfer pump offers high performance in a range of industrial applications.

流量計輸送泵機器安全設備電池自動化灌裝機濾油器、機油濾清器水過濾器連接器、耦合器隔膜泵電纜、連接器軟件噴嘴

With a radial backlash system and sturdy gears, this three-phase pump is ideal for transferring oils with viscosity up to 1000 cSt, while guaranteeing a flow rate up to 65 l/min at 9 bar.

K400電子脈沖式流量表，計量元件為橢圓齒輪，用于潤滑劑和柴油的加注計量。流量表外殼材料為鋁合金。橢圓齒輪的工作原理可以讓計量精度高，壓力損失小。K400型既可安在油管上也可裝在油加油設備上，以方便對加注流體進行實時計量。

液體：柴油, 油類, 生物柴油

使用行業：汽修設備

PIUSI(派優士)公司于1953年成立于意大利曼圖瓦市的Suzzara鎮。派優士PIUSI股份公司向燃料、潤滑劑和液體的轉存和計量行業提供專業方案，產品使用簡便且高性能。派優士泵浦、計量器、加注設備和附件(過濾器、加油加油設備等)在全球各個行業備受青睞并深受用戶贊賞：其中有農業、汽車制造業甚至航海等，企業尤其專注于尿素(AdBlue, DEF, ARLA)的加注機械。

規格參數

- 標準AAA電池

- 爆裂壓力200bar

- 檢查和維護方便

- 運作壓力70bar

- 鋁質殼體，外配橡膠保護套

- 乙醛樹脂橢圓齒輪

- 5位(可重設)顯示器，7位總數

- 載荷損失 < 0.5巴

- 流量達30公升/分鐘

- 計量精度+/- 0.5 %

- 重復性0.2%

- 油品粘度從2到2000 cSt

Its compact design and self-priming ability make it suitable for filling and emptying tanks and filtration systems, and for transferring heavy oils.

High performance for high-viscosity oils

With a three-phase motor, Viscomat Gerotor is designed to manage all types of oil with viscosity up to 1000 cSt while guaranteeing a flow rate up to 65 l/min at 9 bar.

Viscomat gerotor application types

VISCOMAT GEROTOR applications include filling and emptying tanks, transferring and maintaining oils, and servicing filtration systems to remove impurities. More specifically:

PIUSI電池組BATTERY KIT 3000

電池套件是一種便攜式柴油傳輸套件。柴油加油機配有帶 12 或 24 V 直流電機的自吸式電動葉片泵。

電池套件適用于用戶須在安全條件下傳輸和分配柴油的所有條件，例如，當只有電池電源可用時。Battery Kit 柴油加油機旨在確保在加油土方機械操作復雜的情況下進行可靠的柴油傳輸和分配。

長期的可靠性

鑄鐵機身使電池套件堅固耐用。由于其緊湊性、可靠性和易于安裝，電池套件柴油轉移套件可用于需要在安全條件下為建筑、船舶或農業機械分配或轉移柴油的所有情況。重量、泵的小尺寸和適用于身體的手柄都是使電池套件易于處理和在任何工作環境中使用的重要特征。

使用簡單

便攜式柴油傳送裝置電池套件的主要特點之一是安裝靈活且快速。電動泵的流速高達45-80 l/min，確保以 30 分鐘的占空比快速傳輸。該套件的抽吸能力高達2公噸，并配備了2公噸長的帶電池連接鉗的電纜、一根4公噸長的直徑為 3/4"的燃料軟管、一個鋁制手動噴嘴和一個用于抽吸的底部過濾器軟管，保證輸送的柴油質量，不含雜質。

性能特點

多功能性

移動且隨時可用

開/關

Filling and emptying tanks: transferring oil from storage tanks to distribution containers or emptying tanks during servicing procedures.

Filtration systems: transferring oil through filtration systems and removing impurities from it.

Transferral and maintenance: filling and draining oils from tankers, for oil changes in heavy machinery or large-scale equipment.

PIUSI reliability and quality

PIUSI電子控制單元ACCESS 85

PIUSI ACCESS 85 是一個電子控制單元，允許用戶控制多個用戶從油箱中取出燃料。它能夠控制：泵的啟動和停止，用戶通過電子鑰匙訪問，分配器加油設備的位置以及相關的前進。它還具有一個內置的緊急按鈕來停止所有操作。

訪問控制

適用于任何泵和系統

可以使用

多用戶

電平控制輸入

With the VISCOMAT GEROTOR oil transfer pump, you are choosing a reliable and high-quality oil transfer solution. The pump is made using top quality materials and offers outstanding performance, while guaranteeing a long service life and efficient fluid management.

If you are looking for an oil transfer pump that combines high performance with reliability, opt for PIUSI-made quality.

Features

Flow rate up to 65 l/min

Three-phase motor

Easy to fit

Compact design

Product code Description Parts Manuals

F00334800 VISCOMAT GEROTOR T 400V/50Hz

PIUSI手動噴嘴EASY K400 WINDSCREEN

EASY K400 WINDSCREEN 是一種手動噴嘴，適用于輸送防凍劑和擋風玻璃清洗液。它配備了 K400 儀表的擋風玻璃版本。

由堅固的塑料材料特別制成。

流速：從 1 到 120 l/min

精度：± 0.5 %

壓力：max.25 bar

隨時可用

符合人體工學的抓握

重量輕

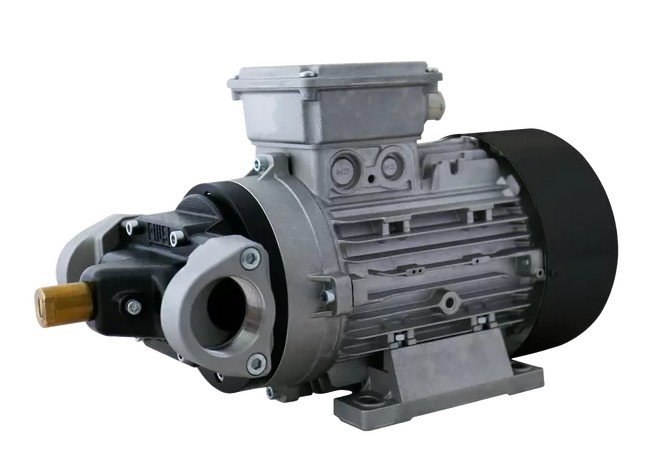

VISCOMAT GEAR

VISCOMAT GEAR: High-suction oil transfer pump for medium-high viscosity fluids. Perfect oil transfer pump for oil and diesel.

PIUSI氣動隔膜泵MP 130

MP 130 是一種用于輸送 AdBlue、燃料、擋風玻璃和水的泵。

Piusi MP 130 雙隔膜氣動泵，旨在確?？煽啃院透咝阅埽瑏碜栽谌剂虾土黧w傳輸系統領域的多年經驗。

隔膜氣動泵適用于輸送各種類型的流體，包括：水、尿素等化學液體、防凍液或清洗液。它特別適用于重載應用和潛在防爆性環境（ATEX 2 區認證）。

適用于多種應用

PIUSI MP 130 隔膜氣動輸送泵有一個堅固的高科技聚合體中心體，而側半殼和吸入和輸送歧管則是聚丙烯。在熱塑性材料中使用高質量隔膜確保水、尿素等化學液體以及流速高達 50 l/min 的防凍液或擋風玻璃清洗液的清潔和傳輸。

氣動回路保證操作無危險，其結構原理使 Piusi MP 130 氣動隔膜輸送泵特別適用于潛在防爆性環境中的應用（2 區 ATEX 認證）。

可靠

Piusi MP 130 輸送泵是自吸式的，可以無損壞地干運行。它還允許在沒有壓力損失的情況下進行準確的速度調節。它可以與 K24 數字流量計和 SB325_X 點膠噴嘴組合使用。

雙向

長壽命隔膜

內置擴散器

適用于潛水安裝

重載

堅固的設計

Viscomat Gear is an oil transfer pump, available in the single-phase and three-phase versions.

The available versions are suitable for all those applications requiring an oil transfer pump with high suction capacity in order to transfer fluids with medium-high viscosity.

HIGH PERFORMANCE

The high viscosity of the lubricating oil, unlike other types of fluids, needs to be transferred with greater strength. For this reason, the Viscomat Gear oil transfer system is characterized by the self-priming gear pump, capable of supporting and guaranteeing a steady flow rate and consistency in the flow dispensed with high viscosity, up to 2000 cSt with a flow rate of up to 14 l/min. The continuous operation guarantees high suction capacity with pressure up to 25 bar. The internal profile gear pump has been designed as a valid and modern solution able to meet the different needs of pumping lube oils in the automotive field.

RELIABLE

The sintered steel rotor features gears that provide good strength to the rotor during transfer.

If you are looking for a high performance oil transfer pump, choose the quality Made in PIUSI.

Adjustable bypass

Super silent

Small size

PIUSI流量計K150

K150 專為滿足流量計的市場要求而設計，適用于高于 120 l/min 的流速，既可用于柴油和生物柴油等流體，也可用于潛在防爆性環境；以汽油為例。K150易于校準，隨時可用；它的鋁制外殼和堅固的機身使這款儀表適用于的應用，同時保證始終具有PIUSI設備的相同精度和質量。機械顯示器允許快速讀取分配的數量。由于（可選）1,5”法蘭套件，它可以安裝在任何地方。

重載條件

高流速

爆破壓力 28 bar

易讀

4個流動方向

F0030401D VISCOMAT 350/2 M 230V/50Hz

F0030403D VISCOMAT 200/2 M 230V/50-60Hz

F0030405D VISCOMAT 200/2 T 400/460V-50/60Hz

F0030430D VISCOMAT 230/3 M 230V/50Hz

F00304T1D VISCOMAT 350/2 T 400V/50Hz

F00304T4D VISCOMAT 230/3 T 400V/50Hz

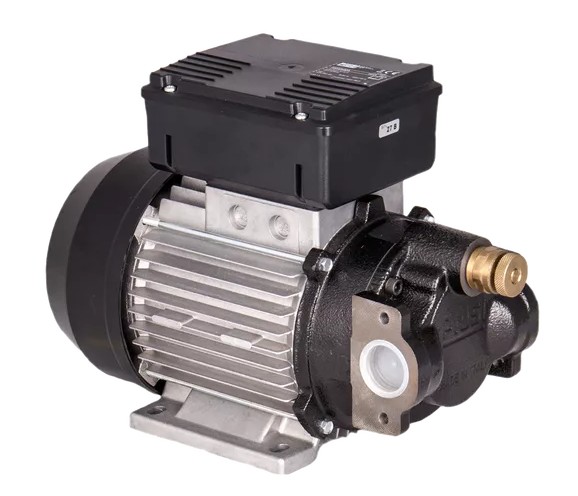

VISCOMAT VANE

Discover VISCOMAT VANE: a high-performance, reliable electric oil fuel transfer pump for diesel and oil. Experience efficiency at its best.

Fuel, Lubrication

Oil, Diesel/HVO/XTL

Mining & Construction, Industrial, Agriculture

Viscomat Vane is an oil and diesel transfer pump, available in the Viscomat Vane 70 and Viscomat Vane 90 versions. The available AC version is suitable for all those applications where it is necessary to apply a transfer system with high suction capacity in order to transfer fluids with medium-high viscosity.

PIUSI輸送泵EX100高流速

重型

持續運行

熱保護

UL 版本可用

可拆卸泵腳

The high density of the oil, compared to other types of liquids, requires a greater strength in the transfer phase. For this reason, the Viscomat Vane oil and diesel transfer system is characterized by the AC self-priming vane pump, capable of supporting and guaranteeing a constant flow rate and regularity in the flow dispensed with low viscosity, up to 500 cSt with a flow rate of up to 50 l/min. The continuous operation ensures high suction capacity with pressure up to 6 bar. The asynchronous AC motor, on the other hand, is self-ventilated, closed and available in different voltages and frequencies, both single-phase and three-phase, in order to adapt to any working condition.

The Viscomat Vane oil and diesel transfer pump offers the possibility to regulate the operation with closed delivery, thanks to the application of the by-pass integrated in the pump body.

PIUSI水箱液位指示器OCIO 2.0

OCIO 2.0 讀取罐中的液位。該裝置通過插入罐體的管道檢測液位產生的靜壓，并顯示液位或體積。

OCIO 2.0 需要使用自助服務管理 2.0 軟件。

OCIO 2.0 配備本地電子設備和集成 LAN 卡，可與您的 PC 進行持續的雙向?qū)υ挕?通過將 OCIO 2.0 連接到 Self Service Management 2.0 軟件，您可以：

低/高液位報警

流體量指示

流體高度指示

空位指示

內置顯示器

兼容 SSM 2.0 和 MCO 2.0

從遠程位置設置儲罐類型和尺寸。

程序級警報。

定義測量單位。

校準儀器。

根據設置的警報級別，OCIO 2.0 可以切斷連接設備的電源。OCIO 2.0 有幾個不同的版本：

OCIO RS/485（用于自助服務 mc 2.0、cube mc 2.0、Mcbox 2.0）

OCIO WiFi 2.0

OCIO MC 2.0

The sintered steel rotor has resin vanes that provide good strength to the rotor during transfer. For greater safety of the oil transfer system, Viscomat Vane can be accessed from the pump side to ensure proper maintenance of the rotating shaft seal.

VERSATILITY

MOBILE AND READY TO USE

MULTIPURPOSE PUMP

ADJUSTABLE BYPASS

PIUSI油脂氣動泵GREASE CART KIT 30

GREASE CART KIT 是一種潤滑脂分配裝置，適用于輸送高粘度潤滑劑。它包括 P60:1 BOOSTER 氣動泵、鼓蓋、從動板、鼓推車、轉環、軟管和注油加油設備。

雙效泵

超級靜音

高壓力

000303000 VISCOMAT 90 T 400V/50Hz

F00303M00 VISCOMAT 90 M 230V - 50/60

F0033190A VISCOMAT 70 T 400/50 460/60

F0033490A VISCOMAT 70 230V 50/60Hz

PIUSI遠程顯示器REMOTE DISY

用于脈沖計的遠程顯示器

用于遠程控制脈沖計的遠程顯示器（通過max.15 m的電纜）。 大屏幕顯示交付數量和不可重置總數。配備用于校準儀表的軟件應用程序?？捎米骰撅@示設備和脈沖發射器。對于設計為識別數量的脈沖的接收器來說是必不可少的。脈沖發射器型號的簡單接口管理系統擴展了與遠程顯示器相結合的脈沖計的應用領域。

具有浮點（0.001 到 99999）的 5 位部分總計（h=11.5 mm）和 8 位不可重置總計（h = 5 mm，從 1 到 99999999）的獨特顯示。電池或電源。每升脈沖數設置為：1、2、10、20、50、100。不同的測量單位設置。低電量指示。流量指示。

大屏幕顯示

不可重置總數

5 位數字部分總數

標準電池

兼容所有脈沖計

脈沖數/升：1、2、10、20、50、100

VISCOMAT DC

Looking for a portable oil fuel transfer pump? The VISCOMAT DC pump quickly dispenses oil in vehicle tanks. Perfect as a small oil transfer pump for workshops

Garage Equipment, Agriculture, Mining & Construction

Viscomat DC is a direct current oil transfer pump. Viscomat DC is suitable for workshops with demanding work paces and can transfer and dispense oil to the tanks of vehicles quickly and safely.

PIUSI自動噴嘴A60 ATEX

PIUSI A60/A140 ATEX 專為滿足ATEX/IECEx的嚴格要求而專門設計，是一款適用于在潛在防爆性環境中分配流體（例如汽油、煤油、柴油等）的自動噴嘴。它配備了一個結構組件，可在儲罐裝滿時自動停止分配。

自動的

選型指南

A60 防爆

自動噴嘴 ATEX 認證。該噴嘴配有一個裝置，可在罐裝滿時自動關閉水流。配有旋轉連接器，它們符合嚴格的要求并獲得所有必要的認證。

A140 ATEX

A140是一種自動柴油噴嘴，經過ATEX認證，設計用于在易燃環境中分配汽油、煤油、柴油。

該噴嘴配有一個裝置，可在罐裝滿時自動關閉流量，防止出現溢出情況。它設計用于為具有較大油箱的車輛（如農業和植物機械）快速、清潔地加油。

作為自動燃油噴嘴，A140 實用且經濟，配有塑料手柄，便于抓握。

Simple and practical to use

Designed for applications where it is necessary to transfer oil from drums, where there is no connection to the power line or compressed air system, Viscomat DC can be applied to drums, IBC tanks or installed in kits for oil transfer like Drum Viscomat.

With a flow rate of up to 10 l/min and a pressure of up to 5 bar, Viscomat DC provides a clean and safe transfer of medium to low viscosity oils, up to 2000 cSt. Its continuous cycle operation guarantees up to 30 minutes of operation.

Reliable over time

Lube oil is characterized by a higher viscosity and needs to be transferred by a reliable and safe oil transfer pump. The PIUSI Viscomat DC gear oil pump is capable of supporting a thick oil with any working lock. To ensure greater reliability, a gear rotor has been adopted instead of a vane one to ensure a greater resistance in the transfer phase.

PIUSI自吸電動泵BP 3000

Viscomat DC is the right solution for workshops that need a fast oil dispensing system to support their rapid work paces, with a quality lasting over time.

BP 3000 是用于柴油輸送的自吸式電動泵，提供 BP 3000 12 V 和 BP 3000 Inline 24 V 版本。

BP 3000 柴油輸送泵由 Piusi 團隊設計，用于需要耐用產品的應用。它用于建筑和農業行業，作為土方機械的安裝或在車輛或建筑工地車輛上裝備移動分配器。

高性能

BP 3000 柴油輸送泵的流速高達 50 l/min，是一種旋轉泵，非常適合從加油機或直接從安裝在車輛或土方機械上的罐中加注和輸送柴油。

直流電機可以承受長達 30 分鐘的連續工作循環。 BP 3000 柴油輸送泵配備帶有燒結轉子和縮醛樹脂葉片的葉片電機，可確保在分配階段提供更大的功率和精度。泵體中集成的旁通閥允許在分配階段調節流量。泵體采用鑄鐵結構，經過防腐處理和涂漆處理，經久耐用，性能可靠。

BP 3000 柴油輸送泵結構緊湊、安裝方便、可靠且安全，可以保證高性能。一些主要特征是：

葉片式泵。

IP55 電機保護。

在占空比為 30 分鐘的間歇操作中使用。

用于泵固定的支架。

如果您正在尋找用于柴油輸送的高性能電動泵，請選擇 PIUSI BP 3000。

Built-in bypass

Multi-purpose pump

In depth

F0030900A VISCOMAT 120/1 12V DC

F0030901A VISCOMAT 60/2 12V DC

F0030902A VISCOMAT 60/1 12V DC

F0031000A VISCOMAT 120/1 24V DC

F0031001A VISCOMAT 60/2 24V DC

F0031002A VISCOMAT 60/1 24V DC

F00311000 VISCOMAT 120/1 12V PST
